Needle Free Connector
Needle Free Connectors
Features & Benefits
The INT® needle free connectors is designed as puncture-free port during injection or aspiration. The silicone valve allows multiple usage and give infection control.
♦ The luer on this needle free device is compatible to all standard luer syringes and connectors
♦ Low priming volume and high flow rates
♦ Activation: more than 200 times
♦ Back pressure: 45 psi
♦ Positive pressure needle free connectors provide forward flushing when a syringe or IV line disconnecting from the cannula to avoid clotting, also eliminates the needs of manual flushing.
Needle Free Connectors Specifications
|
Configuration |
Part Number |
Part Image |
Priming Volume |
Flow Rate @ 1.5 psi |
|
Male-Female |

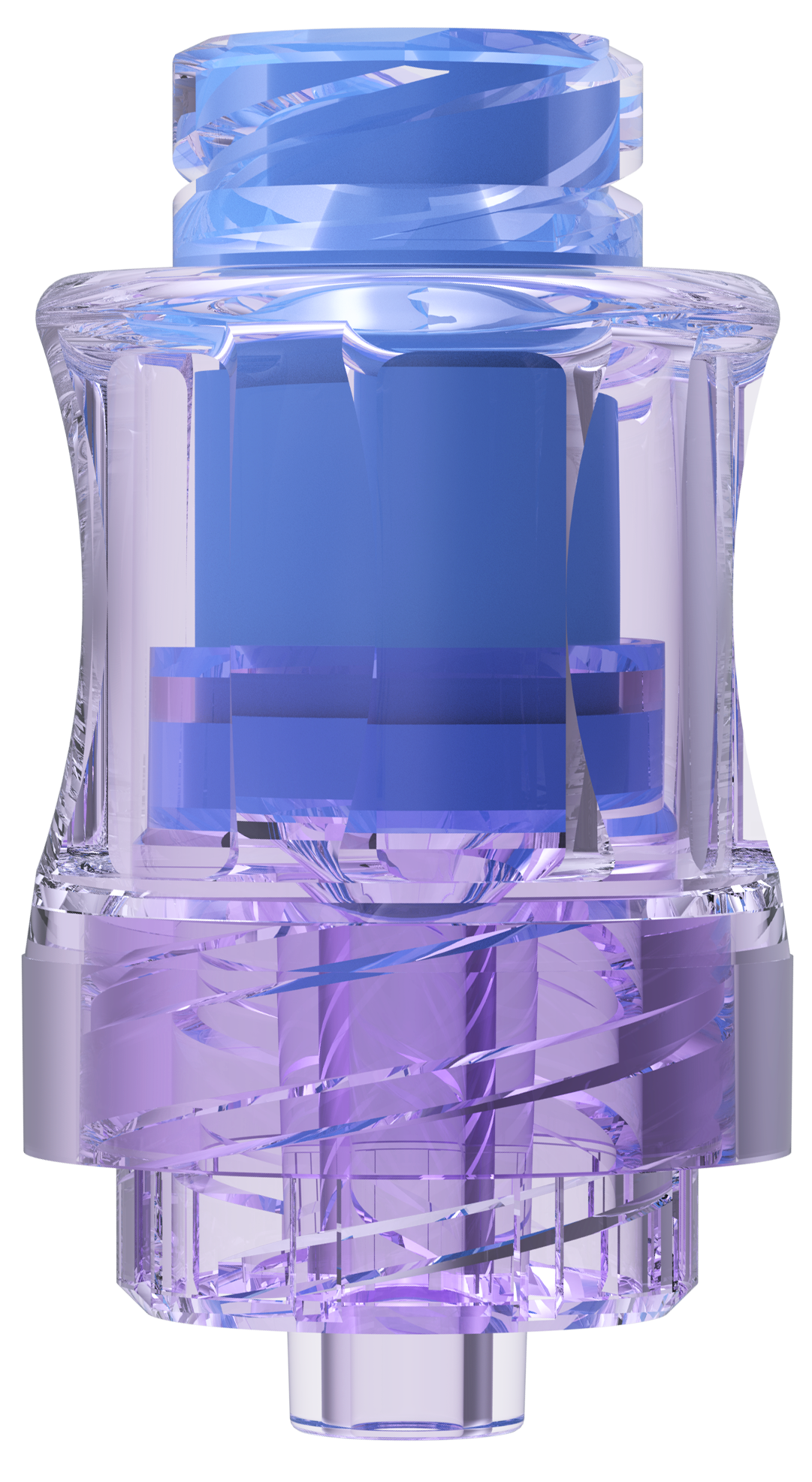

NFC01 |
|
0.09ml |
＞600 ml/min |
|
Female-Tube 2.4mm ID port |

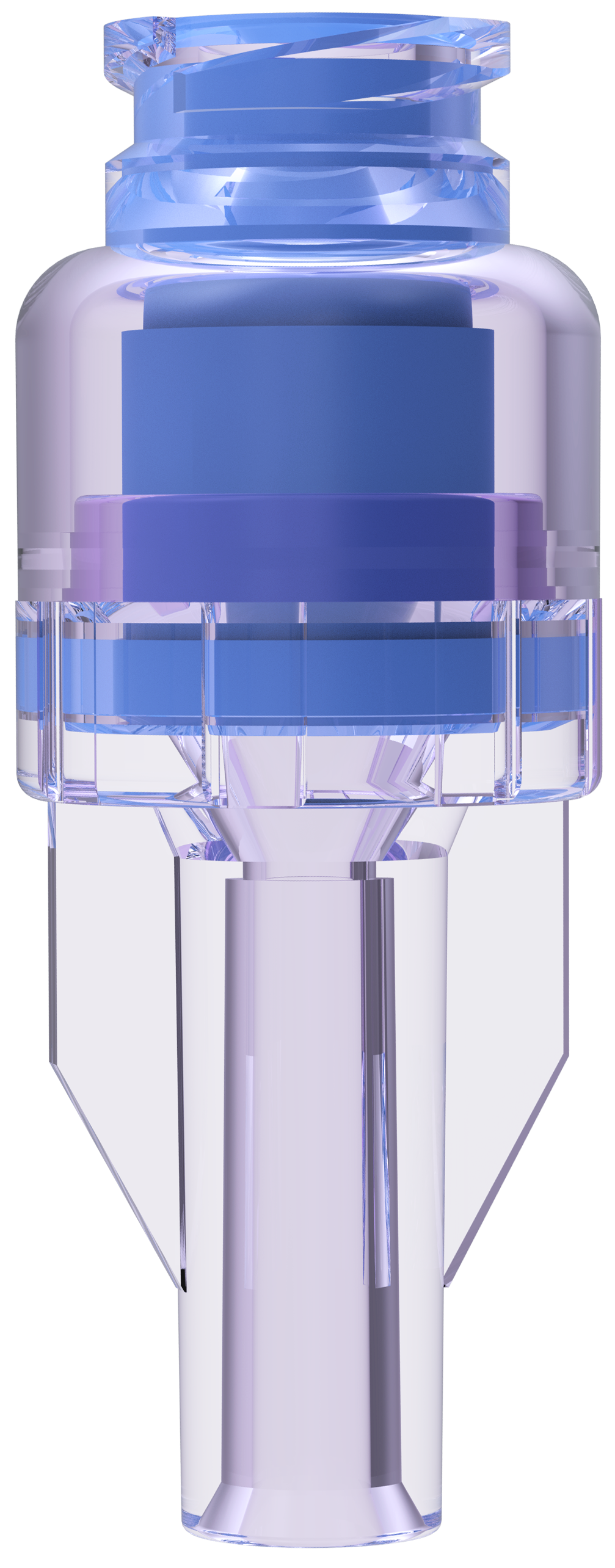

NFC02 |
|
0.12ml |
＞380 ml/min |
|
Female-Tube 4.0mm ID port |

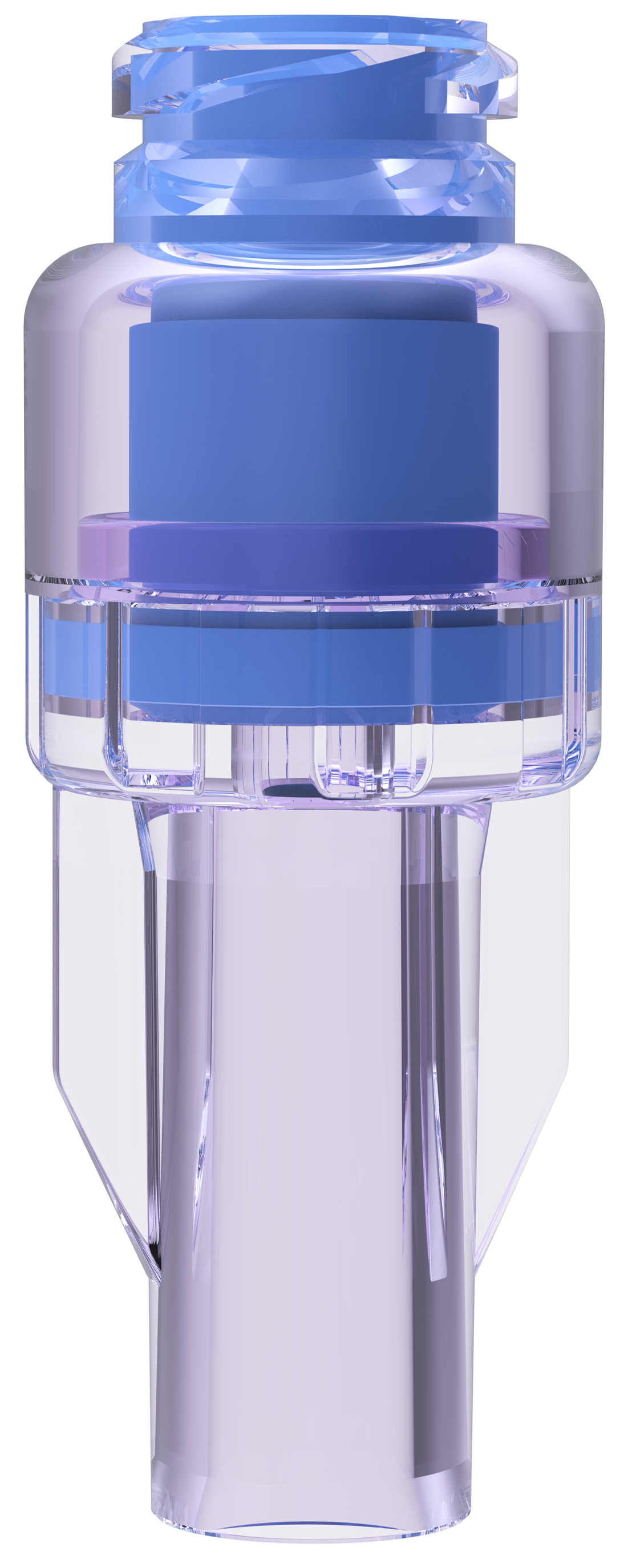

NFC05 |
|
0.24ml |
＞510 ml/min |
|
Y site 4.0mm ID ports |
NFC06 |
|
0.19ml |
＞360 ml/min |
